WAVE SPRING WASHERS – LOAD RATED (WSW) On M.D. Hubbard Spring Co., Inc.

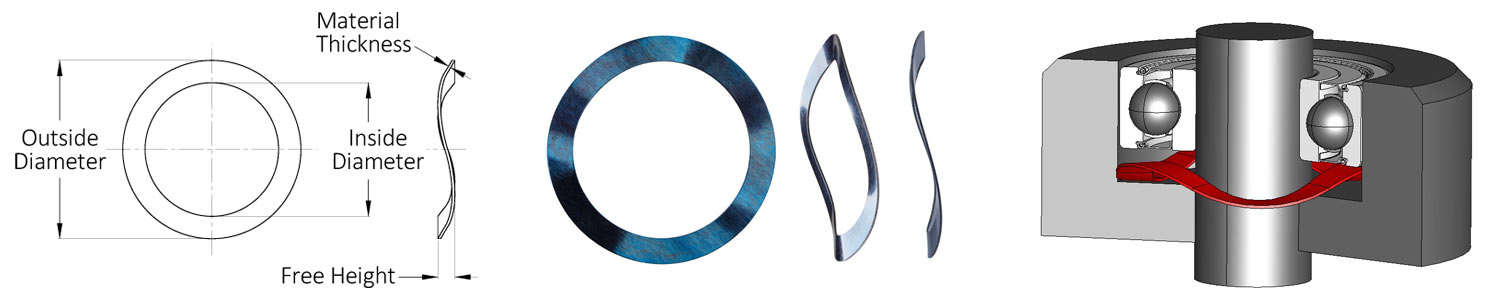

Load rated disc spring washers are engineered to pre-load bearings with 10mm - 52mm OD.

They are meant to take up tolerance stack in bearing assemblies and to provide a high and precise load on the outer bearing race. This makes for smoother, quieter operation and longer bearing life.

1 - 58 of 58 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Clear Filter

Outside Diameter (in)

Outside Diameter (mm)

Inside Diameter (in)

Inside Diameter (mm)

Bearing Outside Diameter (OD) (mm)

Part Number	Outside Diameter	Material Type	Finish	Inside Diameter	Free Height	Bearing Outside Diameter (OD)	Loaded Height	Load	Add To Cart/Request Quote

WSW-367-S-6	N/A 0.367 in9.32 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 0.265 in6.73 mm	N/A 0.030 in0.76 mm	N/A 10.0 mm	N/A 0.015 in0.38 mm	N/A 3.0 lb13.3 N	Add To Cart Request Quote
WSW-484-S-9	N/A 0.484 in12.29 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 0.397 in10.08 mm	N/A 0.029 in0.74 mm	N/A 13.0 mm	N/A 0.020 in0.51 mm	N/A 4.0 lb17.8 N	Add To Cart Request Quote
WSW-492-S-7	N/A 0.492 in12.50 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 0.350 in8.89 mm	N/A 0.035 in0.89 mm	N/A 13.0 mm	N/A 0.020 in0.51 mm	N/A 4.0 lb17.8 N	Add To Cart Request Quote
WSW-608-S-8	N/A 0.608 in15.44 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 0.459 in11.66 mm	N/A 0.040 in1.02 mm	N/A 16.0 mm	N/A 0.025 in0.64 mm	N/A 4.0 lb17.8 N	Add To Cart Request Quote
WSW-618-S-8	N/A 0.618 in15.70 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 0.440 in11.18 mm	N/A 0.040 in1.02 mm	N/A 16.0 mm	N/A 0.025 in0.64 mm	N/A 4.0 lb17.8 N	Add To Cart Request Quote
WSW-731-S-9	N/A 0.731 in18.57 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 0.588 in14.94 mm	N/A 0.047 in1.19 mm	N/A 19.0 mm	N/A 0.030 in0.76 mm	N/A 4.0 lb17.8 N	Add To Cart Request Quote
WSW-734-S-9	N/A 0.734 in18.64 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 0.531 in13.49 mm	N/A 0.050 in1.27 mm	N/A 19.0 mm	N/A 0.030 in0.76 mm	N/A 5.5 lb24.5 N	Add To Cart Request Quote
WSW-855-S-10	N/A 0.855 in21.72 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 0.650 in16.51 mm	N/A 0.060 in1.52 mm	N/A 22.0 mm	N/A 0.030 in0.76 mm	N/A 5.5 lb24.5 N	Add To Cart Request Quote
WSW-925-S-10	N/A 0.925 in23.50 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 0.719 in18.26 mm	N/A 0.066 in1.68 mm	N/A 24.0 mm	N/A 0.033 in0.84 mm	N/A 7.5 lb33.4 N	Add To Cart Request Quote
WSW-1004-S-11	N/A 1.004 in25.50 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 0.780 in19.81 mm	N/A 0.070 in1.78 mm	N/A 26.0 mm	N/A 0.035 in0.89 mm	N/A 8.3 lb36.9 N	Add To Cart Request Quote
WSW-1080-S-12	N/A 1.080 in27.43 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 0.839 in21.31 mm	N/A 0.073 in1.85 mm	N/A 28.0 mm	N/A 0.036 in0.91 mm	N/A 10.0 lb44.5 N	Add To Cart Request Quote
WSW-1102-S-12	N/A 1.102 in27.99 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 0.856 in21.74 mm	N/A 0.075 in1.91 mm	N/A 29.0 mm	N/A 0.037 in0.94 mm	N/A 11.5 lb51.2 N	Add To Cart Request Quote
WSW-1159-S-12	N/A 1.159 in29.44 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 0.901 in22.89 mm	N/A 0.080 in2.03 mm	N/A 30.0 mm	N/A 0.040 in1.02 mm	N/A 12.3 lb54.7 N	Add To Cart Request Quote
WSW-1235-S-14	N/A 1.235 in31.37 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 0.961 in24.41 mm	N/A 0.087 in2.21 mm	N/A 32.0 mm	N/A 0.043 in1.09 mm	N/A 15.5 lb68.9 N	Add To Cart Request Quote
WSW-1351-S-16	N/A 1.351 in34.32 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 1.051 in26.70 mm	N/A 0.099 in2.51 mm	N/A 35.0 mm	N/A 0.049 in1.24 mm	N/A 18.0 lb80.1 N	Add To Cart Request Quote
WSW-1543-S-16	N/A 1.543 in39.19 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 1.201 in30.51 mm	N/A 0.105 in2.67 mm	N/A 40.0 mm	N/A 0.052 in1.32 mm	N/A 21.0 lb93.4 N	Add To Cart Request Quote
WSW-1543-S-20	N/A 1.543 in39.19 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 1.201 in30.51 mm	N/A 0.125 in3.18 mm	N/A 40.0 mm	N/A 0.062 in1.57 mm	N/A 31.0 lb137.9 N	Add To Cart Request Quote
WSW-1593-S-18	N/A 1.593 in40.46 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 1.239 in31.47 mm	N/A 0.110 in2.79 mm	N/A 41.0 mm	N/A 0.055 in1.40 mm	N/A 24.5 lb109.0 N	Add To Cart Request Quote
WSW-1621-S-20	N/A 1.621 in41.17 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 1.261 in32.03 mm	N/A 0.112 in2.84 mm	N/A 42.0 mm	N/A 0.056 in1.42 mm	N/A 25.5 lb113.4 N	Add To Cart Request Quote
WSW-1819-S-20	N/A 1.819 in46.20 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 1.404 in35.66 mm	N/A 0.125 in3.18 mm	N/A 47.0 mm	N/A 0.062 in1.57 mm	N/A 30.5 lb135.7 N	Add To Cart Request Quote
WSW-2028-S-23	N/A 2.028 in51.51 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 1.575 in40.01 mm	N/A 0.140 in3.56 mm	N/A 52.0 mm	N/A 0.069 in1.75 mm	N/A 36.0 lb160.1 N	Add To Cart Request Quote
WSW-2132-S-23	N/A 2.132 in54.15 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 1.658 in42.11 mm	N/A 0.148 in3.76 mm	N/A 55.0 mm	N/A 0.073 in1.85 mm	N/A 38.5 lb171.3 N	Add To Cart Request Quote
WSW-2420-S-25	N/A 2.420 in61.47 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 1.872 in47.55 mm	N/A 0.168 in4.27 mm	N/A 62.0 mm	N/A 0.082 in2.08 mm	N/A 46.0 lb204.6 N	Add To Cart Request Quote
WSW-2645-S-28	N/A 2.645 in67.18 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 2.057 in52.25 mm	N/A 0.184 in4.67 mm	N/A 68.0 mm	N/A 0.090 in2.29 mm	N/A 58.5 lb260.2 N	Add To Cart Request Quote
WSW-2816-S-30	N/A 2.816 in71.53 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 2.200 in55.88 mm	N/A 0.197 in5.00 mm	N/A 72.0 mm	N/A 0.097 in2.46 mm	N/A 66.5 lb295.8 N	Add To Cart Request Quote
WSW-3118-S-35	N/A 3.118 in79.20 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 2.420 in61.47 mm	N/A 0.207 in5.26 mm	N/A 80.0 mm	N/A 0.104 in2.64 mm	N/A 90.0 lb400.3 N	Add To Cart Request Quote
WSW-3328-S-35	N/A 3.328 in84.53 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 2.603 in66.12 mm	N/A 0.227 in5.77 mm	N/A 85.0 mm	N/A 0.112 in2.84 mm	N/A 90.0 lb400.3 N	Add To Cart Request Quote
WSW-3519-S-39	N/A 3.519 in89.38 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 2.740 in69.60 mm	N/A 0.234 in5.94 mm	N/A 90.0 mm	N/A 0.116 in2.95 mm	N/A 100.0 lb444.8 N	Add To Cart Request Quote
WSW-3917-S-45	N/A 3.917 in99.49 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 3.047 in77.39 mm	N/A 0.258 in6.55 mm	N/A 100.0 mm	N/A 0.128 in3.25 mm	N/A 120.0 lb533.8 N	Add To Cart Request Quote
WSW-4300-S-45	N/A 4.300 in109.22 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 3.370 in85.60 mm	N/A 0.302 in7.67 mm	N/A 110.0 mm	N/A 0.148 in3.76 mm	N/A 140.0 lb622.8 N	Add To Cart Request Quote
WSW-4627-S-49	N/A 4.627 in117.53 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 3.612 in91.74 mm	N/A 0.334 in8.48 mm	N/A 118.0 mm	N/A 0.162 in4.11 mm	N/A 159.0 lb707.3 N	Add To Cart Request Quote
WSW-4997-S-49	N/A 4.997 in126.92 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 3.890 in98.81 mm	N/A 0.355 in9.02 mm	N/A 128.0 mm	N/A 0.172 in4.37 mm	N/A 177.0 lb787.3 N	Add To Cart Request Quote
WSW-5408-S-55	N/A 5.408 in137.36 mm	N/A High Carbon Steel	N/A Vibro Ground - Light Oil	N/A 4.208 in106.88 mm	N/A 0.388 in9.86 mm	N/A 138.0 mm	N/A 0.187 in4.75 mm	N/A 197.0 lb876.3 N	Add To Cart Request Quote
WSW-367-KS-6	N/A 0.367 in9.32 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 0.265 in6.73 mm	N/A 0.030 in0.76 mm	N/A 10.0 mm	N/A 0.015 in0.38 mm	N/A 3.0 lb13.3 N	Add To Cart Request Quote
WSW-484-KS-9	N/A 0.484 in12.29 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 0.397 in10.08 mm	N/A 0.029 in0.74 mm	N/A 13.0 mm	N/A 0.020 in0.51 mm	N/A 4.0 lb17.8 N	Add To Cart Request Quote
WSW-492-KS-7	N/A 0.492 in12.50 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 0.350 in8.89 mm	N/A 0.035 in0.89 mm	N/A 13.0 mm	N/A 0.020 in0.51 mm	N/A 4.0 lb17.8 N	Add To Cart Request Quote
WSW-608-KS-8	N/A 0.608 in15.44 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 0.459 in11.66 mm	N/A 0.040 in1.02 mm	N/A 16.0 mm	N/A 0.025 in0.64 mm	N/A 4.0 lb17.8 N	Add To Cart Request Quote
WSW-618-KS-8	N/A 0.618 in15.70 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 0.440 in11.18 mm	N/A 0.040 in1.02 mm	N/A 16.0 mm	N/A 0.025 in0.64 mm	N/A 4.0 lb17.8 N	Add To Cart Request Quote
WSW-731-KS-9	N/A 0.731 in18.57 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 0.588 in14.94 mm	N/A 0.047 in1.19 mm	N/A 19.0 mm	N/A 0.030 in0.76 mm	N/A 4.0 lb17.8 N	Add To Cart Request Quote
WSW-734-KS-9	N/A 0.734 in18.64 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 0.531 in13.49 mm	N/A 0.050 in1.27 mm	N/A 19.0 mm	N/A 0.030 in0.76 mm	N/A 5.5 lb24.5 N	Add To Cart Request Quote
WSW-855-KS-10	N/A 0.855 in21.72 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 0.650 in16.51 mm	N/A 0.060 in1.52 mm	N/A 22.0 mm	N/A 0.030 in0.76 mm	N/A 5.5 lb24.5 N	Add To Cart Request Quote
WSW-925-KS-10	N/A 0.925 in23.50 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 0.719 in18.26 mm	N/A 0.066 in1.68 mm	N/A 24.0 mm	N/A 0.033 in0.84 mm	N/A 7.5 lb33.4 N	Add To Cart Request Quote
WSW-1004-KS-11	N/A 1.004 in25.50 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 0.780 in19.81 mm	N/A 0.070 in1.78 mm	N/A 26.0 mm	N/A 0.035 in0.89 mm	N/A 8.3 lb36.9 N	Add To Cart Request Quote
WSW-1080-KS-12	N/A 1.080 in27.43 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 0.839 in21.31 mm	N/A 0.073 in1.85 mm	N/A 28.0 mm	N/A 0.036 in0.91 mm	N/A 10.0 lb44.5 N	Add To Cart Request Quote
WSW-1102-KS-12	N/A 1.102 in27.99 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 0.856 in21.74 mm	N/A 0.075 in1.91 mm	N/A 29.0 mm	N/A 0.037 in0.94 mm	N/A 11.5 lb51.2 N	Add To Cart Request Quote
WSW-1159-KS-12	N/A 1.159 in29.44 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 0.901 in22.89 mm	N/A 0.080 in2.03 mm	N/A 30.0 mm	N/A 0.040 in1.02 mm	N/A 12.3 lb54.7 N	Add To Cart Request Quote
WSW-1235-KS-14	N/A 1.235 in31.37 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 0.961 in24.41 mm	N/A 0.087 in2.21 mm	N/A 32.0 mm	N/A 0.043 in1.09 mm	N/A 15.5 lb68.9 N	Add To Cart Request Quote
WSW-1351-KS-16	N/A 1.351 in34.32 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 1.051 in26.70 mm	N/A 0.099 in2.51 mm	N/A 35.0 mm	N/A 0.049 in1.24 mm	N/A 18.0 lb80.1 N	Add To Cart Request Quote
WSW-1543-KS-20	N/A 1.543 in39.19 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 1.201 in30.51 mm	N/A 0.125 in3.18 mm	N/A 40.0 mm	N/A 0.062 in1.57 mm	N/A 31.0 lb137.9 N	Add To Cart Request Quote
WSW-1593-KS-18	N/A 1.593 in40.46 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 1.239 in31.47 mm	N/A 0.110 in2.79 mm	N/A 41.0 mm	N/A 0.055 in1.40 mm	N/A 24.5 lb109.0 N	Add To Cart Request Quote
WSW-1621-KS-20	N/A 1.621 in41.17 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 1.261 in32.03 mm	N/A 0.112 in2.84 mm	N/A 42.0 mm	N/A 0.056 in1.42 mm	N/A 25.5 lb113.4 N	Add To Cart Request Quote
WSW-1819-KS-20	N/A 1.819 in46.20 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 1.404 in35.66 mm	N/A 0.125 in3.18 mm	N/A 47.0 mm	N/A 0.062 in1.57 mm	N/A 30.5 lb135.7 N	Add To Cart Request Quote
WSW-2028-KS-23	N/A 2.028 in51.51 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 1.575 in40.01 mm	N/A 0.140 in3.56 mm	N/A 52.0 mm	N/A 0.069 in1.75 mm	N/A 36.0 lb160.1 N	Add To Cart Request Quote
WSW-2132-KS-23	N/A 2.132 in54.15 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 1.658 in42.11 mm	N/A 0.148 in3.76 mm	N/A 55.0 mm	N/A 0.073 in1.85 mm	N/A 38.5 lb171.3 N	Add To Cart Request Quote
WSW-2420-KS-25	N/A 2.420 in61.47 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 1.872 in47.55 mm	N/A 0.168 in4.27 mm	N/A 62.0 mm	N/A 0.082 in2.08 mm	N/A 46.0 lb204.6 N	Add To Cart Request Quote
WSW-2645-KS-28	N/A 2.645 in67.18 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 2.057 in52.25 mm	N/A 0.184 in4.67 mm	N/A 68.0 mm	N/A 0.090 in2.29 mm	N/A 58.5 lb260.2 N	Add To Cart Request Quote
WSW-2816-KS-30	N/A 2.816 in71.53 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 2.200 in55.88 mm	N/A 0.197 in5.00 mm	N/A 72.0 mm	N/A 0.097 in2.46 mm	N/A 66.5 lb295.8 N	Add To Cart Request Quote
WSW-3118-KS-35	N/A 3.118 in79.20 mm	N/A Stainless Steel	N/A Vibro Ground	N/A 2.420 in61.47 mm	N/A 0.207 in5.26 mm	N/A 80.0 mm	N/A 0.104 in2.64 mm	N/A 90.0 lb400.3 N	Add To Cart Request Quote
