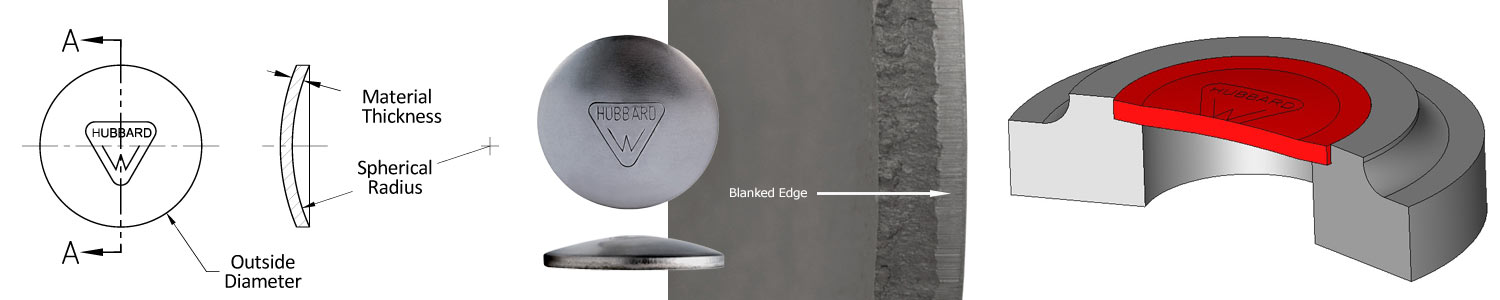

Blanked edge Welch Plugs are engineered to seal core holes in castings with plug sizes ranging from 0.125” to 4.500”.

  • Good for limited depth and lower-pressure applications.
  • Best used as cover or to retain liquid at low or no pressure.


Unit of Measure

Technical Specs

Part Number

 N/A HP-1062-KS-62

Hole Diameter

 N/A 1.068 in

Outside Diameter

 N/A 1.062 in.±0.003 in.

Spherical Radius

 N/A 1.250 in

Material Type

 N/A Stainless Steel

Material Specification

 N/A ASTM A666 - 304

Temper

 N/A Annealed Temper

Material Thickness

 N/A 0.062 in.±0.0020 in.

Finish Type

 N/A Plain Finish
