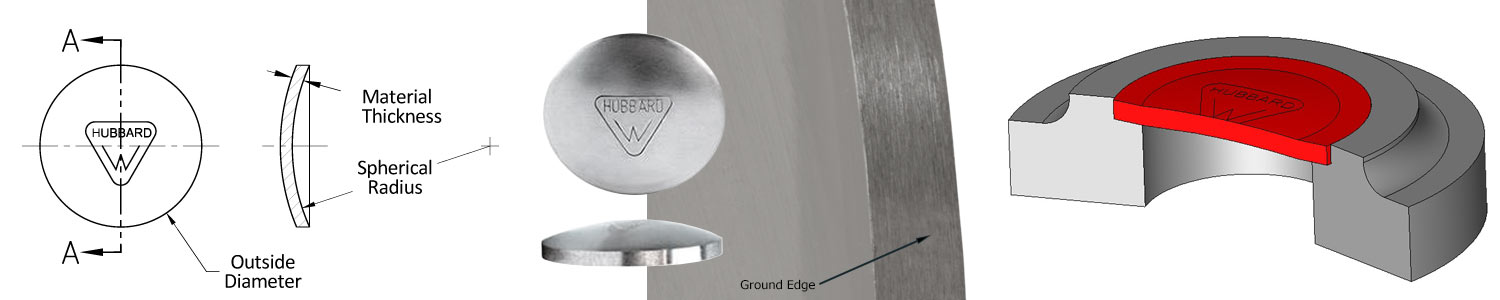

Blanked edge Welch Plugs are engineered to seal core holes in castings with plug sizes ranging from 0.312" - 2.500".
Part Number |
N/A HPG-1625-S-83-MZ |
Hole Diameter |
N/A 1.632 in |
Outside Diameter |
N/A 1.625 in.±0.003 in. |
Spherical Radius |
N/A 2.375 in |
Material Type |
N/A Hot Rolled Steel |
Material Specification |
N/A Steel - SAE J403 - 1008/1010 |
Temper |
N/A As Rolled |
Material Thickness |
N/A 0.083 in.±0.0040 in. |
Finish Type |
N/A Mechanical-Plated Zinc -ASTM B695 0.00015" Minimum (30 salt spray hours) |
