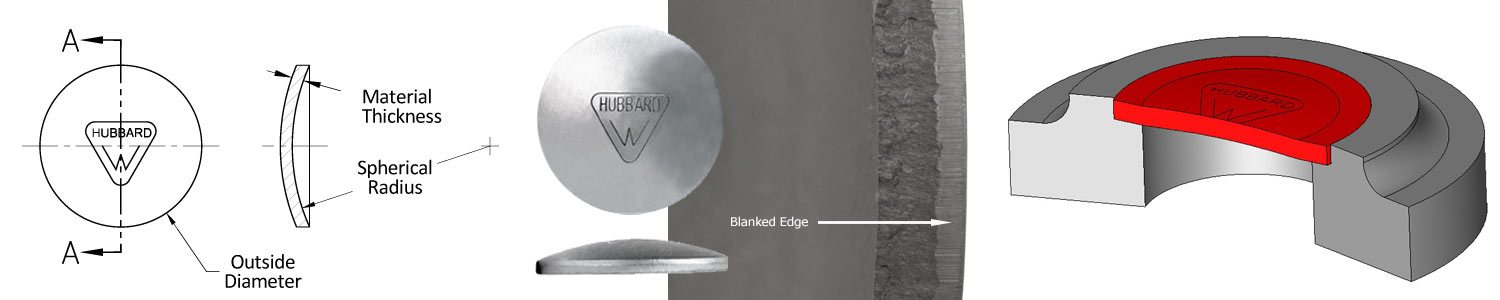

Blanked edge Welch Plugs are engineered to seal core holes in castings with plug sizes ranging from 0.125” to 4.500”.

  • Good for limited depth and lower-pressure applications.
  • Best used as cover or to retain liquid at low or no pressure.



Unit of Measure

Technical Specs

Part Number

 N/A HP-1250-S-62-EZ

Hole Diameter

 N/A 1.256 in

Outside Diameter

 N/A 1.250 in.±0.003 in.

Spherical Radius

 N/A 1.625 in

Material Type

 N/A Hot Rolled Steel

Material Specification

 N/A SAE J403 - 1008/1010

Temper

 N/A As Rolled

Material Thickness

 N/A 0.062 in.±0.0030 in.

Finish Type

 N/A Electro Plated Zinc - ASTM B633 SC1 type "V" - 0.0002" Minimum (72 salt spray hours)
