Catalog

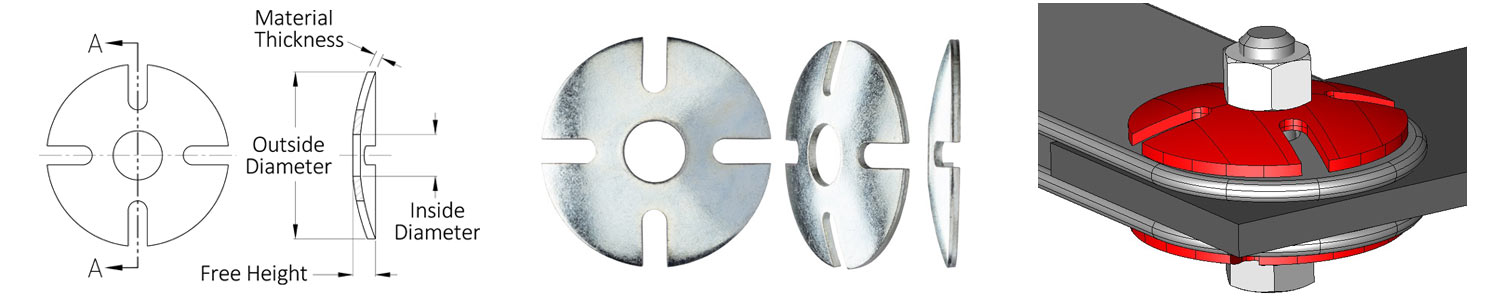

Slotted washers are engineered to fit over bolts ranging from 3mm - 12.0mm.

General purpose slotted washers are used to apply flexible travel between static surfaces or soft, uniform friction between two rotating surfaces.

Request Information

Unit of Measure

Items	EW-130-S-20 0.020 Inch (in) Thickness High Carbon Steel Light Oil General Purpose Slotted Washer	EW-130-S-20-MZ 0.020 Inch (in) Thickness High Carbon Steel Mechanical Plated Zinc General Purpose Slotted Washer	EW-130-S-20-EZ 0.020 Inch (in) Thickness High Carbon Steel Electro Plated Zinc General Purpose Slotted Washer	EW-156-S-20 0.020 Inch (in) Thickness High Carbon Steel Light Oil General Purpose Slotted Washer	EW-156-S-20-MZ 0.020 Inch (in) Thickness High Carbon Steel Mechanical Plated Zinc General Purpose Slotted Washer
Description	N/A *Slotted washers are engineered to fit over bolts ranging from 3mm - 12.0mm.* General purpose slotted washers are used to apply flexible travel between static surfaces or soft, uniform friction between two rotating surfaces.
Fits Over	N/A 0.125 in3.0 mm	N/A 0.125 in3.0 mm	N/A 0.125 in3.0 mm	N/A 0.141 in3.0 mm	N/A 0.141 in3.0 mm
Outside Diameter	N/A 0.469 in11.9 mm
Inside Diameter	N/A 0.130 in3.3 mm	N/A 0.130 in3.3 mm	N/A 0.130 in3.3 mm	N/A 0.156 in4.0 mm	N/A 0.156 in4.0 mm
Free Height	N/A 0.078 in2.0 mm
Material Thickness	N/A 0.020 in0.5 mm
Material Type	N/A High Carbon Steel
Finish	N/A Light Oil	N/A Mechanical Plated Zinc	N/A Electro Plated Zinc	N/A Light Oil	N/A Mechanical Plated Zinc
Fits Over	N/A 0.125 in3.0 mm	N/A 0.125 in3.0 mm	N/A 0.125 in3.0 mm	N/A 0.141 in3.0 mm	N/A 0.141 in3.0 mm
Outside Diameter	N/A 0.469 in.±0.010 in. 11.91 mm±0.25 mm
Inside Diameter	N/A 0.130 in.±0.005 in. 3.30 mm±0.13 mm	N/A 0.130 in.±0.005 in. 3.30 mm±0.13 mm	N/A 0.130 in.±0.005 in. 3.30 mm±0.13 mm	N/A 0.156 in.±0.005 in. 3.96 mm±0.13 mm	N/A 0.156 in.±0.005 in. 3.96 mm±0.13 mm
Free Height	N/A 0.078 in.±0.010 in. 1.98 mm±0.25 mm
Material Thickness	N/A 0.020 in.±0.0010 in. 0.51 mm±0.025 mm
Material Type	N/A High Carbon Steel
Material Specification	N/A ASTM A684/684M - 1074
Temper	N/A Austempered RC45-50
Finish Type	N/A Light Oil	N/A Mechanical-Plated Zinc -ASTM B695 0.00015" Minimum (30 salt spray hours)	N/A Electro Plated Zinc - ASTM B633 SC1 Type "V" - 0.0002" minimum (72 Salt Spray Hours)	N/A Light Oil	N/A Mechanical-Plated Zinc -ASTM B695 0.00015" Minimum (30 salt spray hours)
